  • 15kV HDPE Cable Spacer Modified Polyethylene Cable Spacer

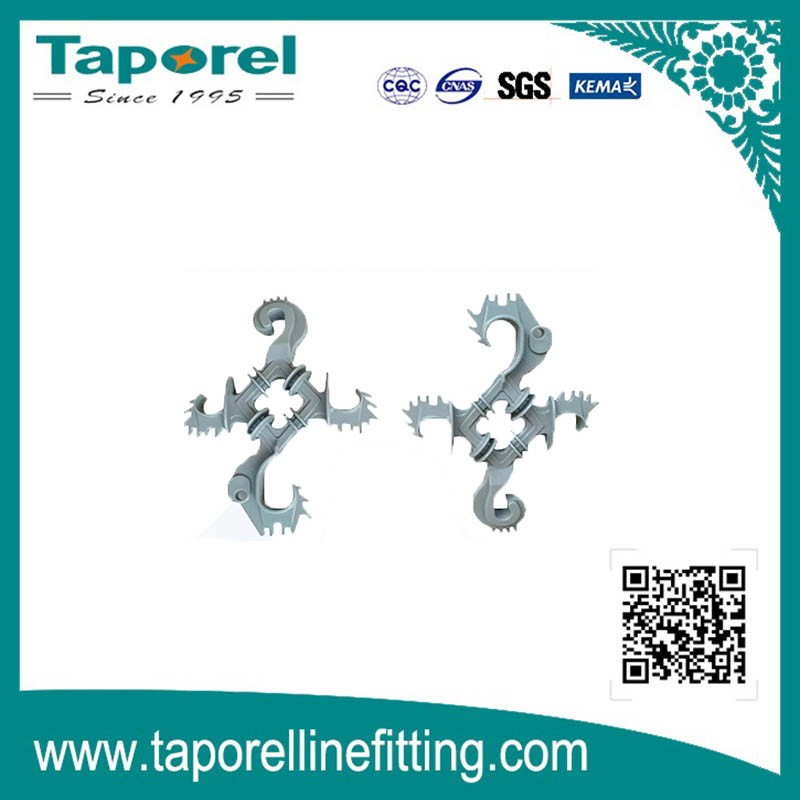

15kV HDPE Cable Spacer Modified Polyethylene Cable Spacer

Characteristics:

– Excellent Track-Resistant

– High Chemical Resistance

– Unbreakable and Light Weight

– Easiest Handling and Transportation

– Low Initial Cost

– Long Service Life

– Durable Metal Treads

– Water Repelling Surface

– High resistance to traction, flexion and impact

– May be fixed by elastomeric ring or pre-shaped plastic lace.


Share:
info@taporel.com +86 187 9266 0323

product details

Description:

The high molecular polymer cable spacer mainly used in 15kV overhead lines to limit the relative movement between sub conductor, which is electrical product makes sub conductor maintain relative spacing position.The main material is quality improved high density HDPE, that is high crystallinity and nonpolar thermoplastic resin, has good heat and cold resistance, high chemical resistance, it also has high rigidity and toughness, high mechanical strength and good electrical properties, especially the high insulation dielectric strength will be very suitable for distribution line, it also can be recycled and reused as soon as reached service life period.

Applications:

Cable spacer is widely used in power transmission and distribution system.

15kV HDPE Cable Spacer Modified Polyethylene Cable Spacer

Features:

– Excellent Track-Resistant

– High Chemical Resistance

– Unbreakable and Light Weight

– Easiest Handling and Transportation

– Low Initial Cost

– Long Service Life

– Durable Metal Treads

– Water Repelling Surface

– High resistance to traction, flexion and impact

– May be fixed by elastomeric ring or pre-shaped plastic lace.

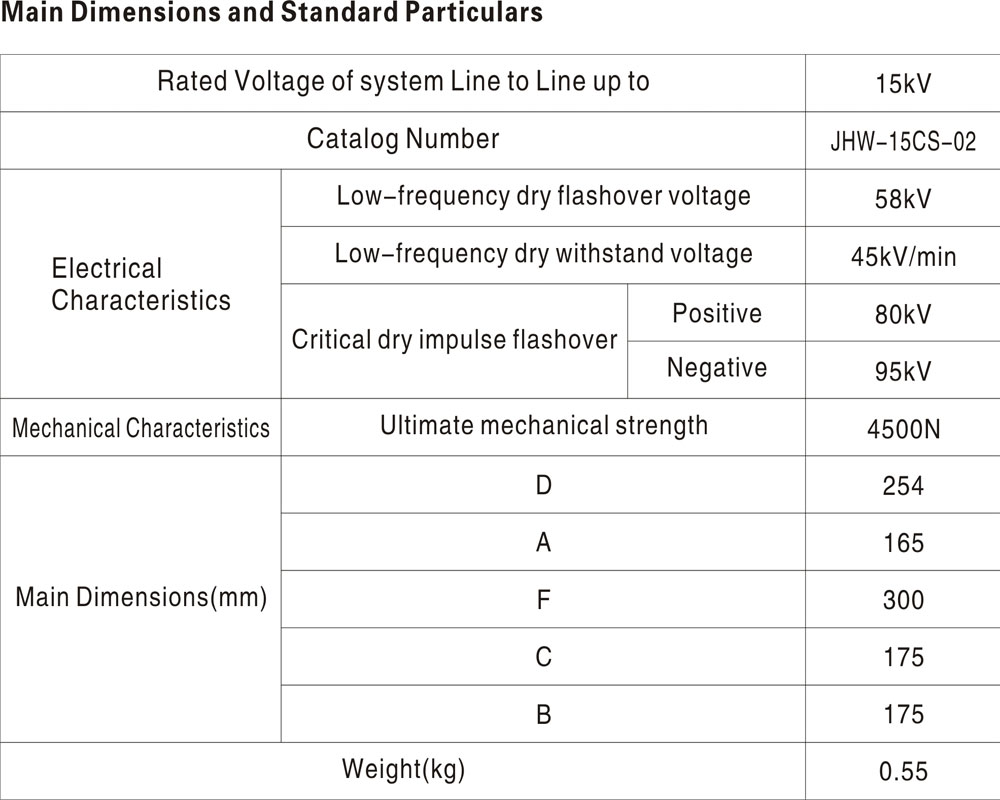

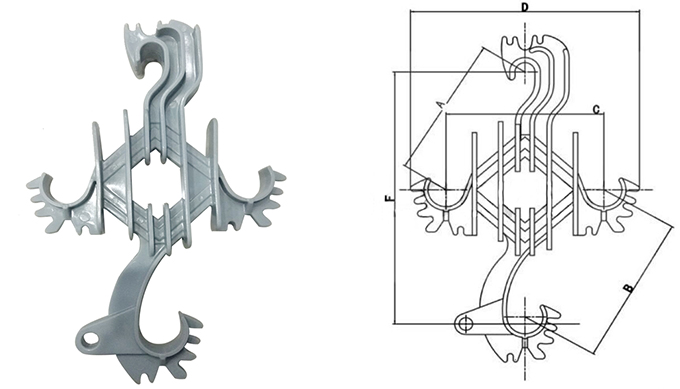

Technical Specifications:

15kV HDPE Cable Spacer Modified Polyethylene Cable Spacer
