Insulator Clevis With Cotter Pin

INSULATOR CLEVIS with Cotter Pin


Share:
info@taporel.com +86 187 9266 0323

product details

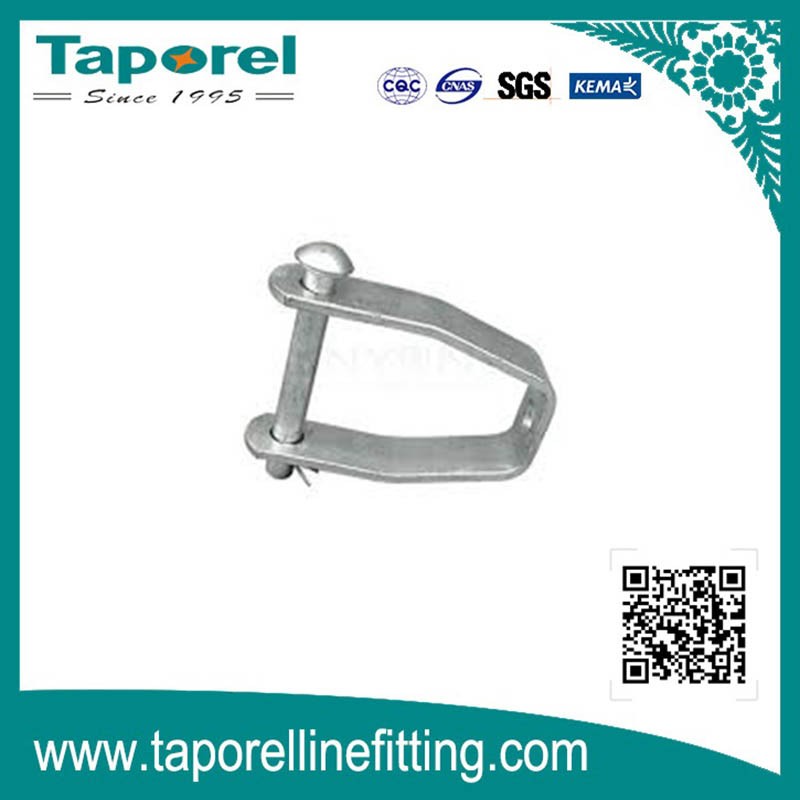

INSULATOR CLEVIS with Cotter Pin


DESCRIPTION:

Clevises are used in conjunction with dead-ends on suspension-type or dead-end insulators.  The thimble is intended to provide a smooth internal contour to prevent stress concentration within the loop of a dead-end.  The clevis includes a steel pin which links it through the eye of an insulator and secures it with a humpbacked cotter key.



APPLICATION:
The clevis is a very important tool that assists in quite a number of ways. They have enhanced pole line technologies to appoint where it makes the job easier. By considering everything I have mentioned in this guide, you can easily get a suitable clevis.



Features:

1) Insulated Clevis supplied complete with one cotter and cotter pin.

2) All ferrous parts are hot dip galvanized except cotter pin which is made of stainless steel.
3) Minimum ultimate tensile strength 500n/mm2.

4)Leading ways to prevent dead end clevis embrittlement.

5)Hot-dip galvanize in conformance with ISO1461 or ASTM A153.


SPECIFICATION:

CoatingGalvanized, ASTM A-153
MaterialSteel
TypeInsulated Secondary Clevis
Height3.50 in
Length4.00 in
