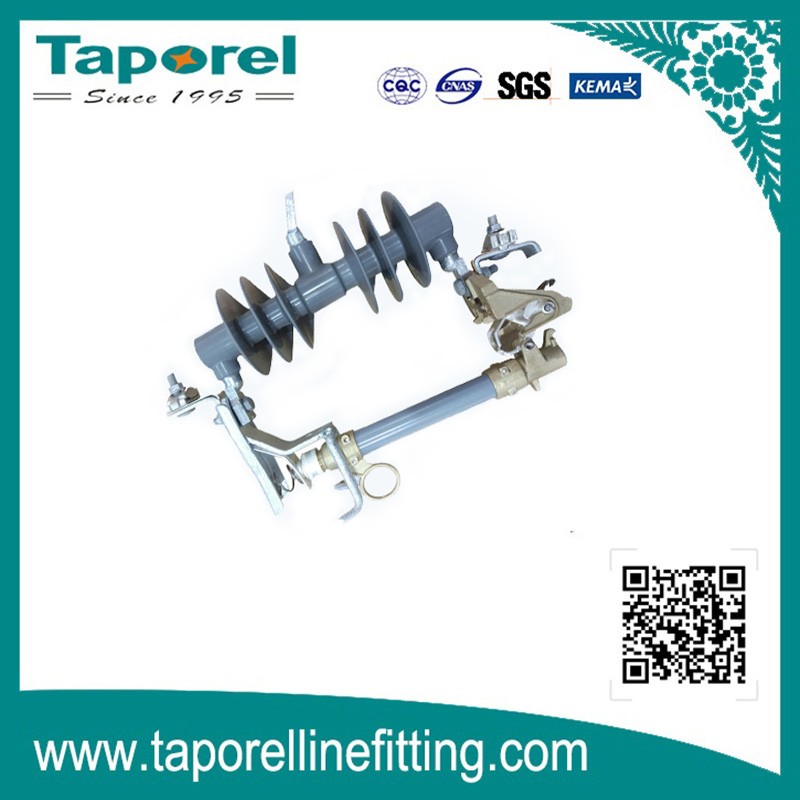

15kV Fuse Cutout

The fuses are fitted in HV side of distribution transformer or distribution branches, used as short circuit and over-load protection as well as the opening and closing load current.

Share:
info@taporel.com +86 187 9266 0323

product details

The fuses are fitted in HV side of distribution transformer or distribution branches, used as short circuit and over-load protection as well as the opening and closing load current.


Description:

In electrical distribution, a fuse cutout or cut-out fuse is a combination of a fuse and a switch, used in primary overhead feeder lines and taps to protect distribution transformers from current surges and overloads. An over-current caused by a fault in the transformer or customer circuit will cause the fuse to melt, disconnecting the transformer from the line. The cut-out fuse features with excellent over-current protection, high power frequency withstand voltage and anti-lightning impulse withstand voltage, high breaking current and high mechanics strength etc.



Application:

A fuse cutout combines a fuse and a switch, used in primary overhead feeder lines and taps to protect distribution transformers from current surges and overloads.



Features:



l Light weight and easy installation

l Reliable fault protection

l Perfect drop out action

l Good hydrophobic property

l Higher creepage distance


Standard:

IEC 60282-1: 2009, IEC 60282-2: 2008, ANSI, etc


Technical data


Model

Rated Voltage (kV)

Rated Current(A)

Max. Rated Peaking Current (kA)

Dry Power Frequency Withstand Voltage(kVr.m.s/min)

Lightening Impulse Withstand Voltage (kVp)

Creepage Distance (mm)

Reference Weight(kg)

HRW12-12(15)

12/15

100

8

50

110

440

3.6

12/15

200

8

50

110

440

3.8
