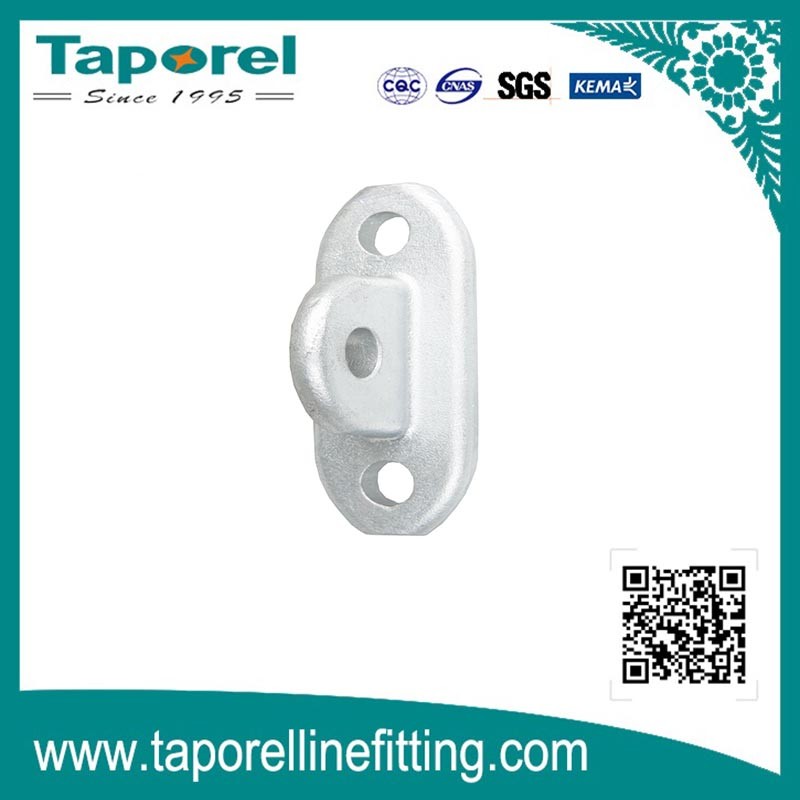

Deadend Tee for Pole Line Hardware

Deadend Tees  for Pole Line Hardware are a high tension attachment used on pole, crossarms or bracing for connections to clevices, shackles, insulators and other attachment hardware.

Description

Taporellingfitting is pleased to introduce high capacity deadend tees for high strength guying and deadending of transmission structures. The galvanized steel deadend tees are rated at 60,000 pounds ultimate tensile strength and are available with a curved or flat mounting base with two different common mounting hole sizes. The mounting hole in the stem is chamfered at the eddge of the holes to remove any sharp and abrupt edges which could contribute to wear on the connecting hardware.

Application:

The Deadend Tee  for Pole Line Hardware is forged from high strength steel and can be used to make simple attachments at the pole, crossarm, X-brace or tension brace. The stem mounting holes can be chamfered for insulator, clevis, hook or other attachments.

Features：

1) Available with either flat mounting base (DET series) or curved mounting base (DETR series).

2) Used for high strength, pole connection interface to clevises, thimble clevises, insulators, shackles and other deadend attachments.

3) For use on wood, steel, concrete or fiberglass poles Material: Steel - Hot Dip Galvanized.

Technical Specification:
