  • 66kV(72.5kV) Post Composite Insulator

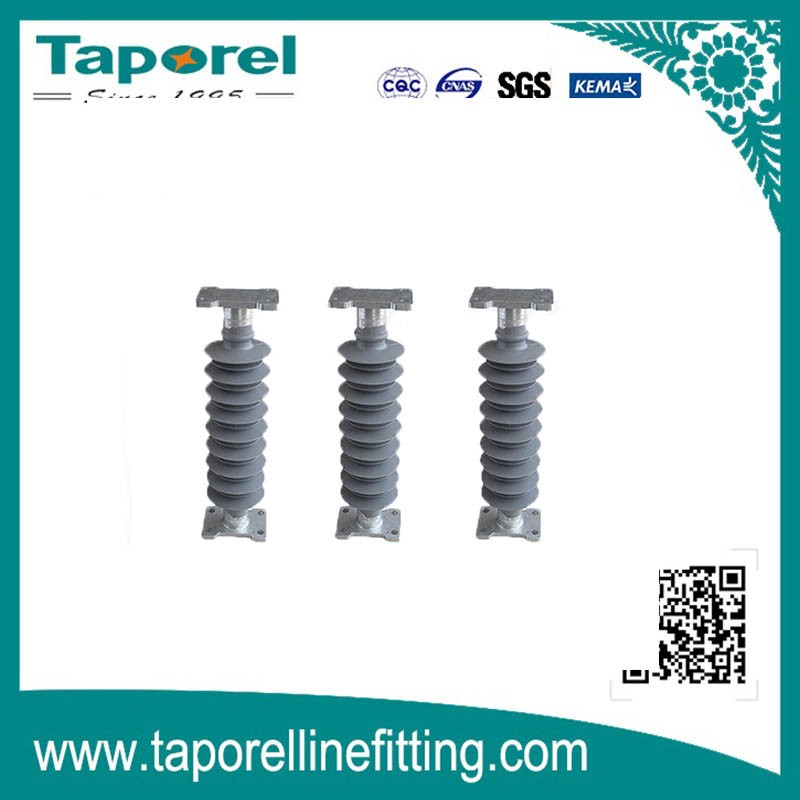

66kV(72.5kV) Post Composite Insulator

Application:

HV transmission lines,suitable for polluted areas

Variety scope: 66kV(72.5kV)

Specified mechanical load: 10kN

Color: Red,Gray,Blue,Yellow or according to customer’s requirement.

Executive Standard:GB/T 19519-2014 IEC 61109


Share:
info@taporel.com +86 187 9266 0323

product details

Description:

Composite post insulator is a kind of silicone rubber apparatus insulators. Its design consists of a resin impregnated fiberglass core, a polymeric housing and metallic end fitting attachment devices. Composite station post insulator applies ANSI C29.19 international standard. Polymer or composite station post insulator can have many mechanical loading: compression, cantilever, tensile and/or torsion, depending on the application.

Application:

HV transmission lines,suitable for polluted areas

Variety scope: 66kV(72.5kV)

Specified mechanical load: 10kN

Color: Red,Gray,Blue,Yellow or according to customer’s requirement.

Executive Standard:GB/T 19519-2014 IEC 61109

Features:

– Light weight,small volume,it can be easily transported and installed

– High mechanical strength

– Good performance of anti-pollution

– Free of maintenance

Structure:

Be made of silicone housing, core rod and end fitting.

Manufacturing Process:

Complete injection technology advantage:Core rod and sheath adhesive without aperture, the inner insulation performance is good, can avoid interface breakdown phenomenon.

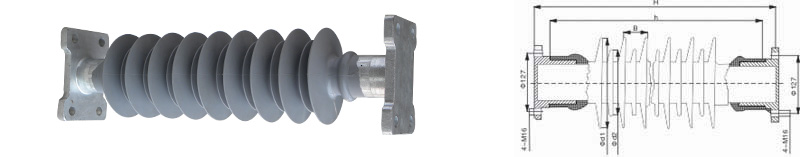

66kV(72.5kV) Post Composite Insulator Diagram

66kV(72.5kV) Post Composite Insulator

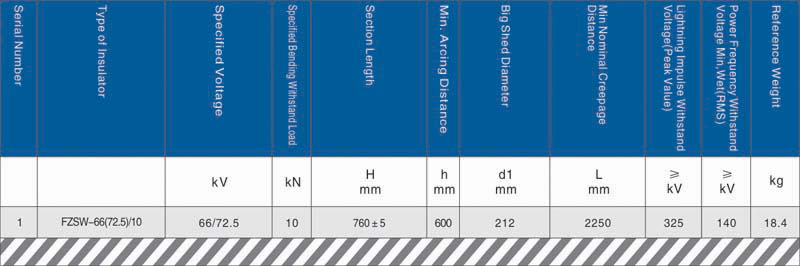

The main technical parameters

66kV(72.5kV) Post Composite Insulator

Note: Product’s dimension, characteristics,connecting type, shed color,etc can be designed and manufactured in accordance with customer’s requirements.
