  • 18in Length Guard Arm Brace

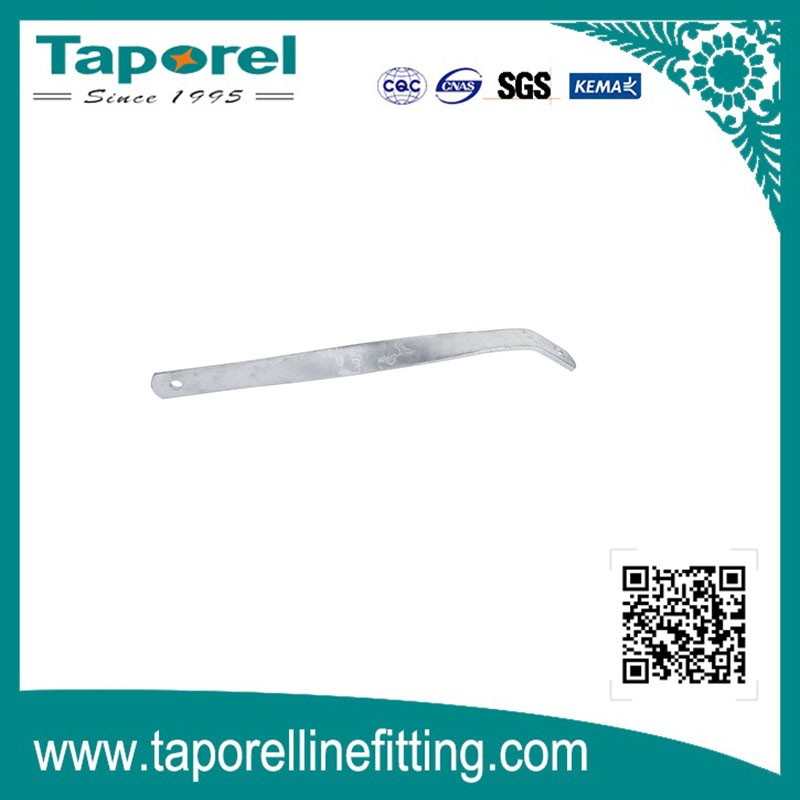

18in Length Guard Arm Brace

Guard arm brace for stabilization of guard arms is 18" overall length with 7/16" dia.arm hole and 9/16" dia. pole-end hole are spaced on 16-1/4" centers. Material is 1/4" x 1-1/4" steel galvanized per ASTM A-153

Share:
info@taporel.com +86 187 9266 0323

product details

Guard arm brace for stabilization of guard arms is 18" overall length with 7/16" dia.arm hole and 9/16" dia. pole-end hole are spaced on 16-1/4" centers. Material is 1/4" x 1-1/4" steel galvanized per ASTM A-153

DESCRIPTION:

The Guard Arm Brace is used for light duty support and stability of crossarms in telecommunications construction. This brace mounts to the crossarm with a 5/8-inch diameter bolt and to the pole with a 3/4-inch diameter lag screw. The material is hot dip galvanized steel.



According to the function and structure, it can be divided into suspension clamp, tension clamp, UT wire clamp, connecting fittings, continuing fittings, protective fittings, equipment clamp, T-shaped wire clamp, busbar fittings, pull-line fittings and other categories; According to the use can be used for line and substation hardware.



APPLICATION:

The guard arm brace is a type of brace mounted to the electrical cross arm, it is usually used with bolts and lag screws, support and keep the cross arm stability in the power and telecom constructions.



Features:

1) Attaches to one side of the guard arm for additional support at points on the pole where cable or drop wire is suspended.
2)Hot-dip galvanized per ASTM A-153.

3) Fastens to electrical cross arm with a bolt.

4) Mounts to pole with a lag screw.

SPECIFICATION:

CoatingGalvanized, ASTM A-153
MaterialSteel
Length18.00 in
Weight1.65 lb
