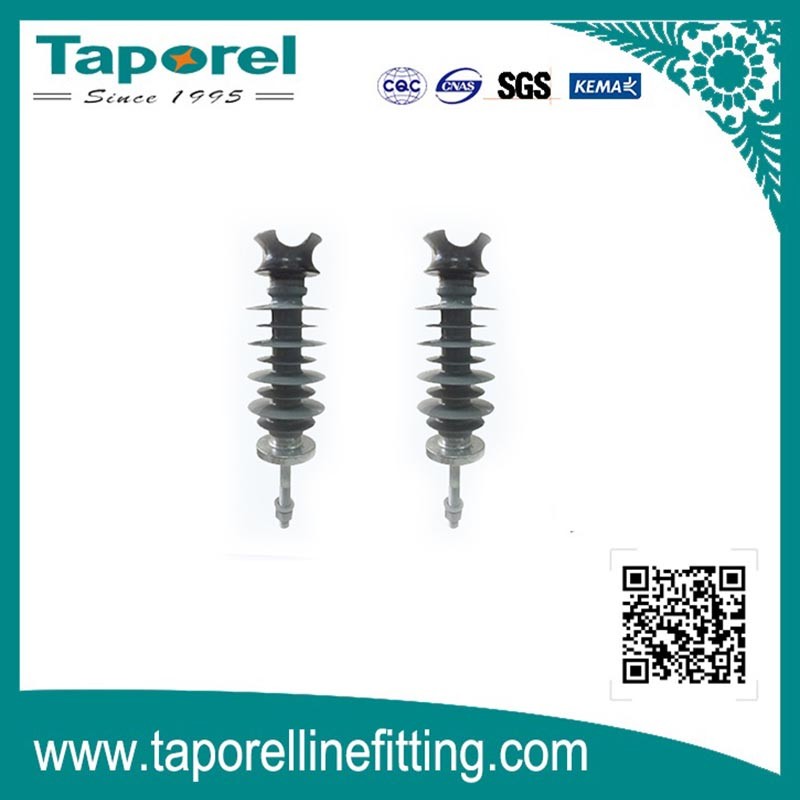

27kV Pin Type Composite Insulator

Description:

Composite pin insulator is applicable for high-voltage line facilities. The insulator has good water-repellent, anti-aging and anti-leakage properties. And it is also featured by high resistance to bending and high mechanical strength. It is easy for installation and its installation dimensions of top and bottom parts are the same with those of corresponding porcelain pin type so that they are interchangeable.

Application:

Variety scope: 27kV

Specified mechanical load: 11kN,12kN

Color: Red,Gray,Blue,Yellow or according to customer’s requirement.

Executive Standard:GB/T 19519-2014 IEC 61109

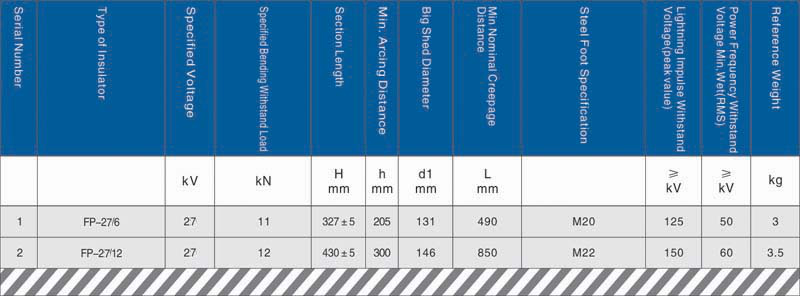

Technical Characteristics:

– Light weight,small volume,it can be easily transported and installed

– High mechanical strength

– Good performance of anti-pollution

– Free of maintenance

Structure:

Be made of silicone housing, core rod and end fitting.

Manufacturing Process:

Complete injection technology advantage:Core rod and sheath adhesive without aperture, the inner insulation performance is good, can avoid interface breakdown phenomenon.

Fitting:

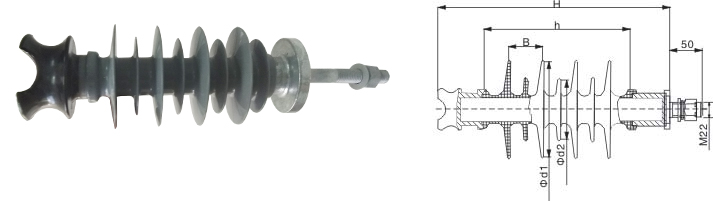

27kV Pin Type Composite Insulator Diagram

Note: Product’s dimension, characteristics,connecting type, shed color,etc can be designed and manufactured in accordance with customer’s requirements.
