Sidewalk Guy fitting

Sidewalk Guy fitting. Used where space is not available for standard guying. Attach with one bolt and two lag screws. Use with End Fittings and pipe (Not included). Hot dip galvanized. RUS Listed.

Description

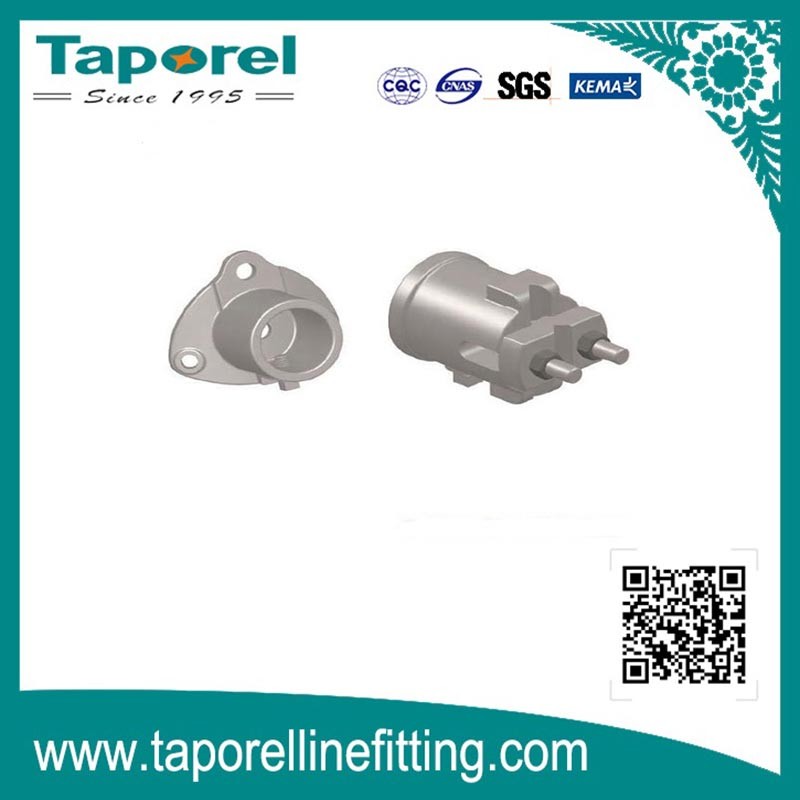

Sidewalk Guy fittings are used with standard pipe near sidewalks and buildings where there is insufficient space for standard guying and where head clearance must be maintained. The J0521 pole plate has four 9/16-inch holes for mounting with lag screws. Fits 2" and 2.5" rigid sidewalk guy pipe.

Application:

These fittings are used with standard pipe near sidewalks and buildings where space is not available for standard guying. We carry multiple sizes and can make them per your specifications so please contact us today for a quote for what you need.

Features：

1) HOT DIP GALVANIZED.

2)  Cast of ductile iron

3) Individual clamps for each guy wire

4) Pole plate mounts using four 1/2-inch lag screws

5) Accept 5/16-inch minimum guy wire

Technical Specification:
