10kV(11kV) Composite Long Rod Suspension Type Insulator

Description:

Composite suspension insulator is composed of fiberglass epoxy resin (ECR) rod, silicon rubber housing and hardware, and is manufactured with once-molding technique and special colloid installation and compression technique. The insulator is featured by excellent electrical characteristics, small volume and less weight.

Application:

HV transmission lines,suitable for polluted areas

Variety scope: 10kV(11kV)

Specified mechanical load: 10kN,70kN

Color: Red,Gray,Blue,Yellow or according to customer’s requirement.

Executive Standard:GB/T 19519-2014 IEC 61109

Features:

– Light weight,small volume,it can be easily transported and installed

– High mechanical strength

– Good performance of anti-pollution

– Free of maintenance

Structure:

Be made of silicone housing, core rod and end fitting, usually with grading ring for the voltage above 110 KV insulators.

Manufacturing Process:

Complete injection technology advantage:Core rod and sheath adhesive without aperture, the inner insulation performance is good, can avoid interface breakdown phenomenon.

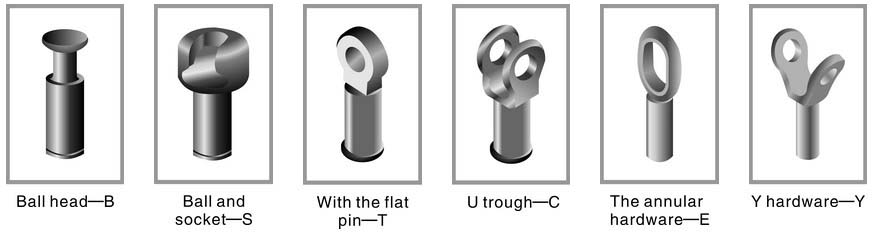

Fitting:

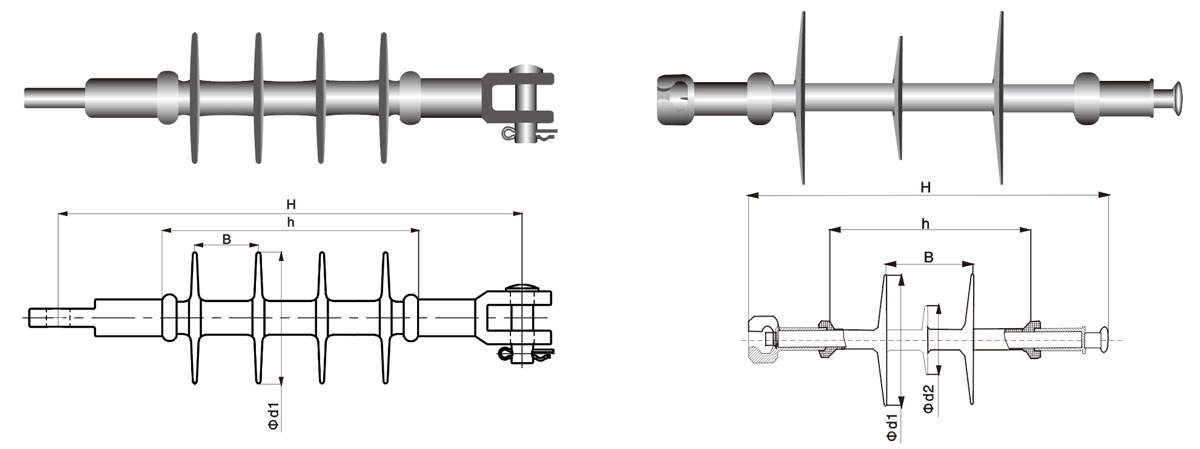

10kV(11kV) Composite Long Rod Suspension Type Insulator Schematic Diagram

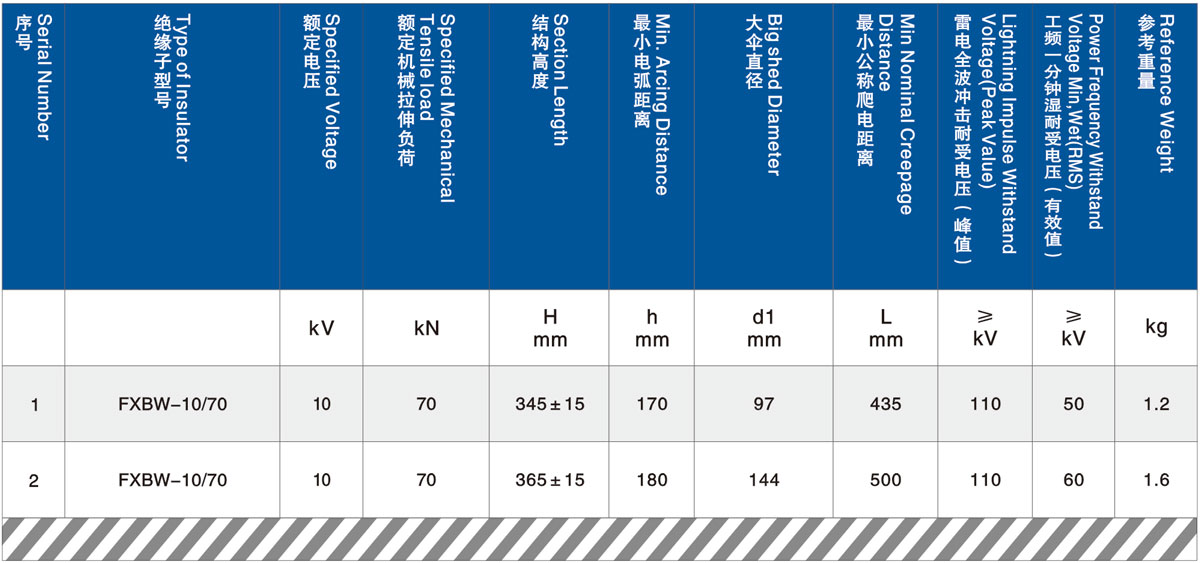

The main technical parameters：

Note: Product’s dimension, characteristics,connecting type, shed color,etc can be designed and manufactured in accordance with customer’s requirements.
