  • 36kV(66kV) Composite Hollow Insulator

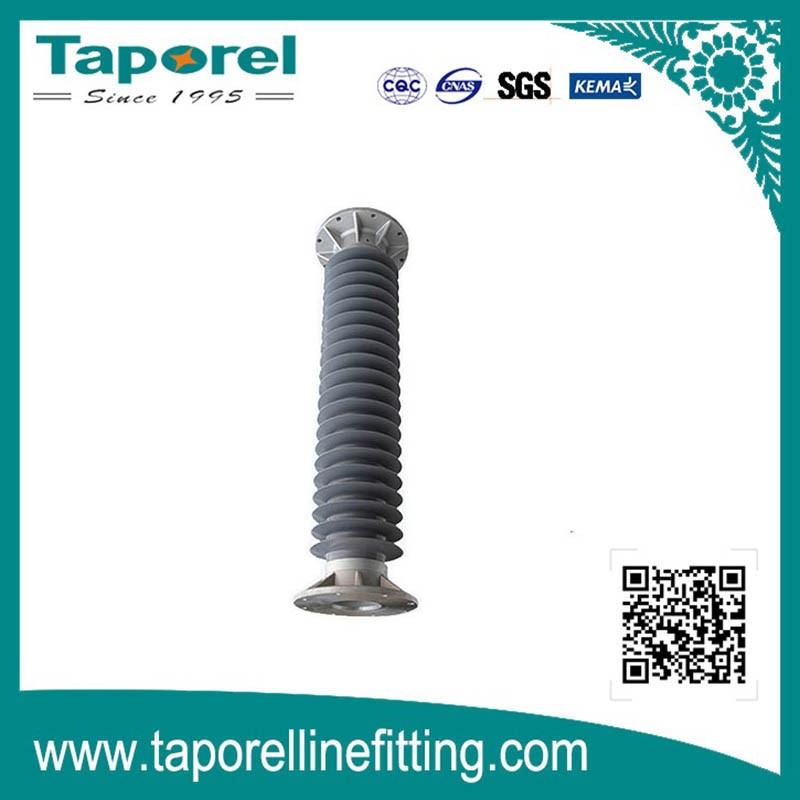

36kV(66kV) Composite Hollow Insulator

Application:

HV transmission lines,suitable for polluted areas

Variety scope: 36kV(66kV)

Specified mechanical load: 1kN,3kN,5kN,10kN

Color: Red,Gray,Blue,Yellow or according to customer’s requirement.

Executive Standard:GB/T 19519-2014 IEC 61109


Share:
info@taporel.com +86 187 9266 0323

product details

Description:

A hollaw composite insulator consisting of an inner tube made of glass-fibre reinforced epoxy and of an outer sheath including the sheds made of silicone rubber has been developed as an alternative to hollow porcelain insulators. The paper describes the principal construction of this new insulator and the mechanical and electrical development tests which were performed. Finally, some examples of practical applications with high voltage apparatus are given.


Application:

HV transmission lines,suitable for polluted areas

Variety scope: 36kV(66kV)

Specified mechanical load: 1kN,3kN,5kN,10kN

Color: Red,Gray,Blue,Yellow or according to customer’s requirement.

Executive Standard:GB/T 19519-2014 IEC 61109

Features:

– Light weight,small volume,it can be easily transported and installed

– High mechanical strength

– Good performance of anti-pollution

– Free of maintenance

Structure:

Be made of silicone housing, core rod and end fitting.

Manufacturing Process:

Complete injection technology advantage:Core rod and sheath adhesive without aperture, the inner insulation performance is good, can avoid interface breakdown phenomenon.

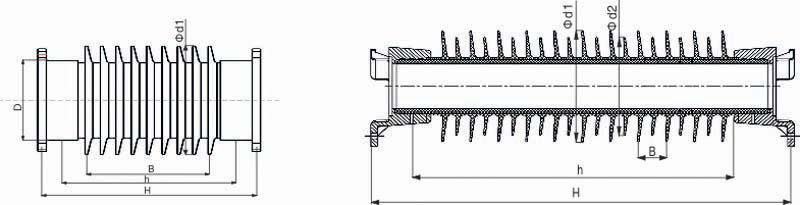

36kV Composite Hollow Insulator Diagram       66kV Composite Hollow Insulator Diagram

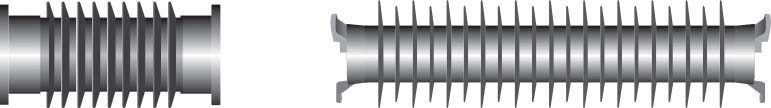

36kV(66kV) Composite Hollow Insulator

36kV(66kV) Composite Hollow Insulator

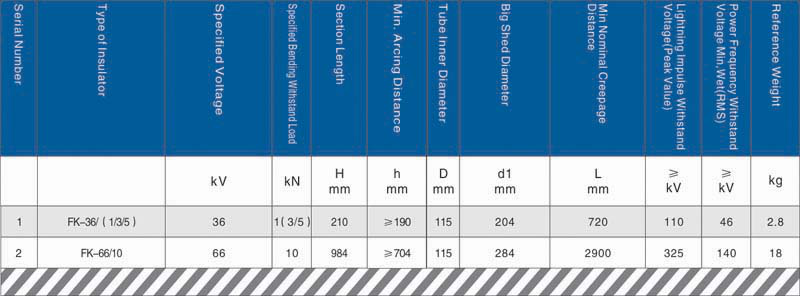

The main technical parameters

36kV(66kV) Composite Hollow Insulator

Note: Product’s dimension, characteristics,connecting type, shed color,etc can be designed and manufactured in accordance with customer’s requirements .
