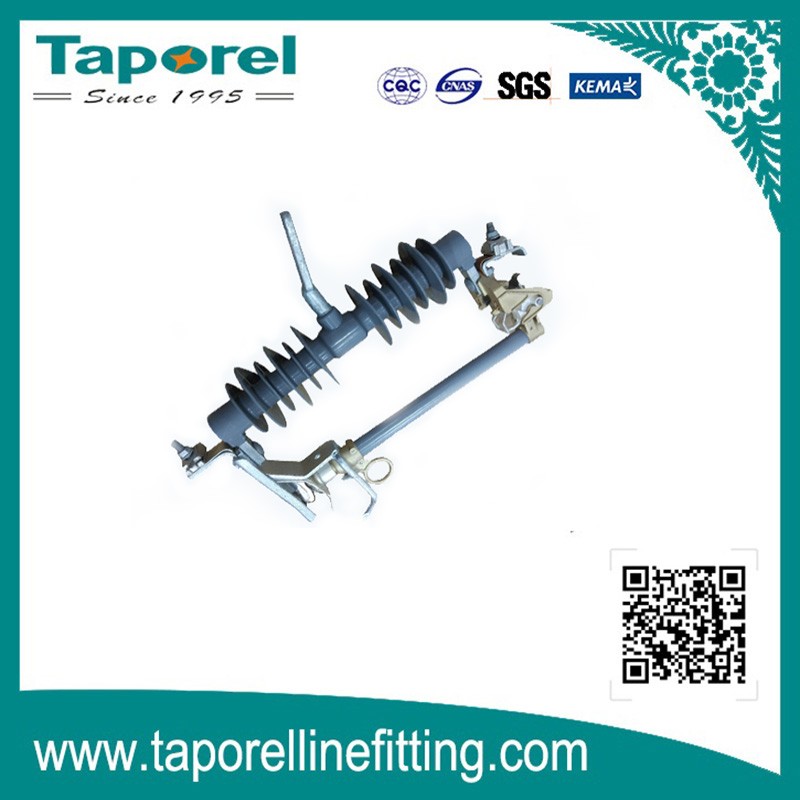

27kV Fuse Cutout

The fuses are fitted in HV side of distribution transformer or distribution branches, used as short circuit and over-load protection as well as the opening and closing load current. The cut-out fuse features with excellent over-current protection, high power frequency Withstand voltage and anti-lightning impulse withstand voltage, high breaking current and high mechanics strength etc.

Share:
info@taporel.com +86 187 9266 0323

product details

The fuses are fitted in HV side of distribution transformer or distribution branches, used as short circuit and over-load protection as well as the opening and closing load current. The cut-out fuse features with excellent over-current protection, high power frequency Withstand voltage and anti-lightning impulse withstand voltage, high breaking current and high mechanics strength etc.

Description:

A fuse cutout is an electrical protection device used in overhead line systems to prevent distribution transformers from being damaged by surges. The working principle of these devices is to connect the fuse to the series of the transformer feeder cable. The connection is through a hinged tubular fuse, in this way the fuse is fixed in position on the cut body. If the link melts and separates under over-current conditions, the fuse holder will drop freely under its own weight, rotate to the hinge, and hang vertically, making its state clearly visible. Most fuse cutout is designed with a metal ring on the fuse holder. When maintenance and repair personnel need to work on the transformer, the fuse can be manually disconnected.



Application:

A fuse cutout combines a fuse and a switch, used in primary overhead feeder lines and taps to protect distribution transformers from current surges and overloads.



Features:



l Light weight and easy installation

l Reliable fault protection

l Perfect drop out action

l Good hydrophobic property

l Higher creepage distance




Standard:

IEC 60282-1: 2009, IEC 60282-2: 2008, ANSI, etc.


Technical data


Model

Rated Voltage (kV)

Rated Current(A)

Max. Rated Peaking Current (kA)

Dry Power Frequency Withstand Voltage(kVr.m.s/min)

Lightening Impulse Withstand Voltage (kVp)

Creepage Distance (mm)

Reference Weight(kg)

HRW12-24(27)

24/27

100

8

70

150

600

4.6

24/27

200

8

70

150

600

4.6
