  • Suspension Standoff Bracket 12 inch

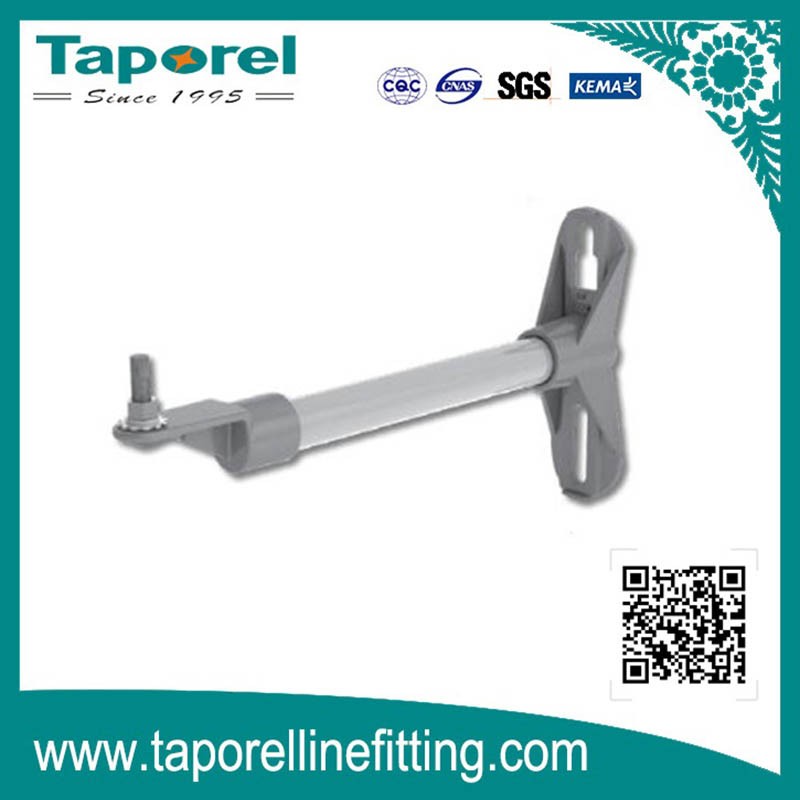

Suspension Standoff Bracket 12 inch

12" Medium Duty Single-Phase Fiberglass Suspension Standoff Bracket


Share:
info@taporel.com +86 187 9266 0323

product details

12" Medium Duty Single-Phase Fiberglass Suspension Standoff Bracket

DESCRIPTION:

Power line fitting is also named pole line accessories or pole hardware fitting, it is an important component of the pole line construction.



According to the function and structure, it can be divided into suspension clamp, tension clamp, UT wire clamp, connecting fittings, continuing fittings, protective fittings, equipment clamp, T-shaped wire clamp, busbar fittings, pull-line fittings and other categories; According to the use can be used for line and substation hardware.



For different raw materials, there are different processes. For the angle steel, the process involves cutting, punching, welding, and bending. For the steel rod, the process is hot forged.



APPLICATION:
1.Ensure that the conductor and insulators are suspended at their correct positions.

2.Ensure that cables remain stable despite the external vagaries of nature such as wind and storm.

3.Complete the connection of different powerline components

4.Can be used to enhance the safety of the powerline.

5.There could be many other roles that are performed by powerline accessories.



Features:

1) The hot-forged part is with more strength than the casting part, and the size is more accurate.


2) Raw material forged steel which is new and no recycles.

3) Uniform on the size and high breaking load to guarantee the stable. When you working with Taporel Electrical, the specialty and service will impress you so much.


SPECIFICATION:

Description - End FittingSuspension
Strength Rating - Minimum Ultimate, Transverse (T)10000 lb
Strength Rating - Minimum Ultimate, Vertical (V)1800 lb
Diameter - Rod / Tube1.5 in
Distance From Pole12 in
