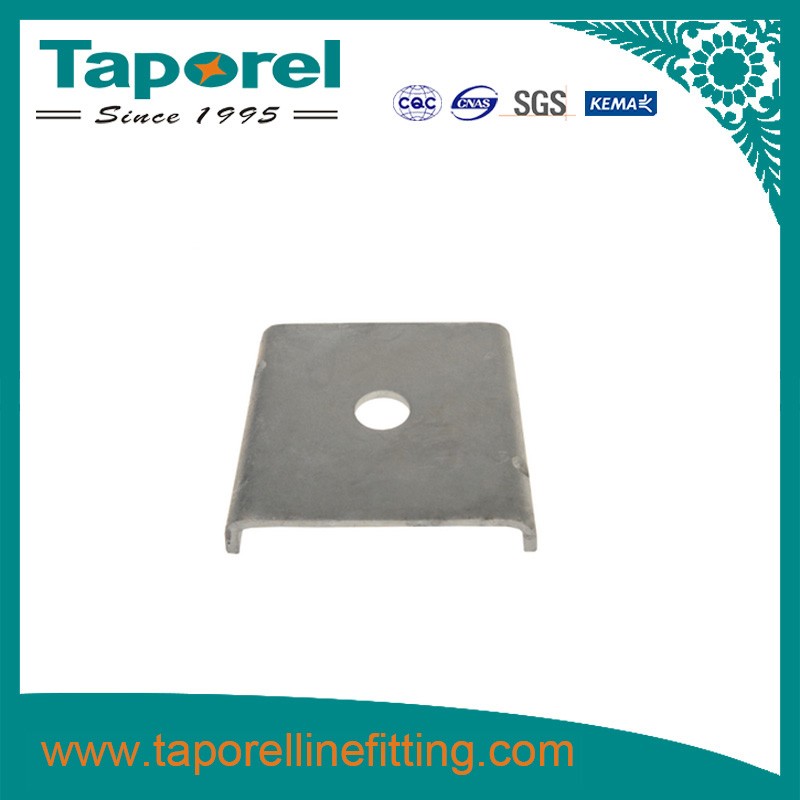

Reinforcing Plate

Reinforcing plate prevents damage to the crossarm from tightened nuts. Plate is used on top or bottom of flat top crossarms to reduce the strain from forged steel insulator pins.

Description

Reinforcing plate prevents damage to 4"*5"(101.6mm*127mm) or 6"*8"(152.4mm*203.2mm) wood crossarm from tightened nuts. The design has a pressed rib and normally used on the side of the crossarm.

Application:

The reinforcing plate support the messenger bolt at locations of heavier than normal loading stress, such as long spans and are used with cable suspension clamps. The lower hole fits over the messenger bolt and the top end is fastened to the pole with a lag screw.

Features：

1) Hot dip galvanized to meet ASTM Specification A153.

2) Raw material forged steel which is new and no recycles.

3) Uniform on the size and high breaking load to guarantee the stable.

Technical Specification:
