What Is the Purpose of an Insulator?

Why insulated?

Rails are the main parts of the rail tracks. They lead the train and transfer the pressure of the wheels to the sleepers. It must have a continuous smooth surface with minimum resistance. Currently, in the electrified railways or automatic block zone, the two rails double as signal lines of track circuits and loop line for locomotive traction. So rails must be insulated in case of stray current interference. Usually, insulators and insulated rail joints are used in rail tracks.

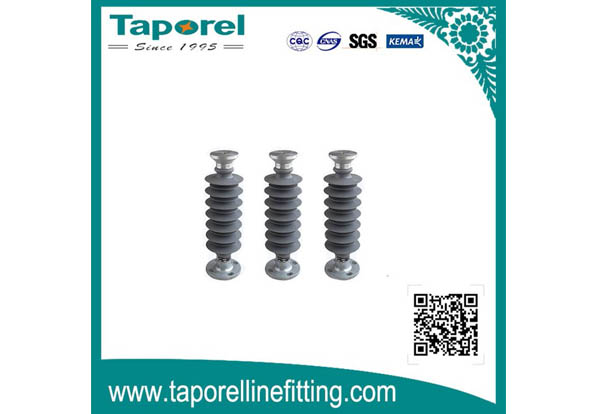

Railway Insulator

Taporel supplies railway insulators used for the electric-railway connecting net and electric locomotive. All our insulated joints are made of steel or polymer composites.

Complete injection technology.The advantage: Core rod and silicone housing adhesive without aperture, good inner insulation performance, and can avoid interface breakdown phenomenon.

Technical Characteristics:

1.Lightweight, small volume, it can be easily transported and installed

2.High mechanical strength. stronger anti-shock performance, uneasy for cracking.

3.Good performance of anti-pollution.

3.Convenient maintenance.

Insulator cleaning

In wet weather conditions, dirty insulators are prone to flashover discharges, so they must be cleaned to restore the original insulation level. The general area is cleaned once a year and the dirty area is cleaned twice a year (once before the fog season).

1. Blackout cleaning

Blackout cleaning is in the line after the blackout workers boarding pole with a rag to wipe. If the wipe is not clean, available wet cloth wipe, can also use detergent scrubbing, if still scrubbing is not clean, should replace the insulator or change synthetic insulators.

2. Non-stop cleaning

Generally, insulators are rubbed on running lines using insulating poles equipped with brushes or tied with cotton yarn. The electrical properties and effective length of the insulating rod used, the distance between the person and the charged part, should be in accordance with the provisions of the corresponding voltage level, and the operation must be supervised by a person.

3. Electrically charged water flushing

Large and small water rinsing two methods. The water used for flushing, the effective length of the operating rod and the distance between the person and the charged part must comply with the requirements of the industry regulations.
