  • 22-33kV HDPE Cable Spacer Modified Polyethylene Cable Spacer

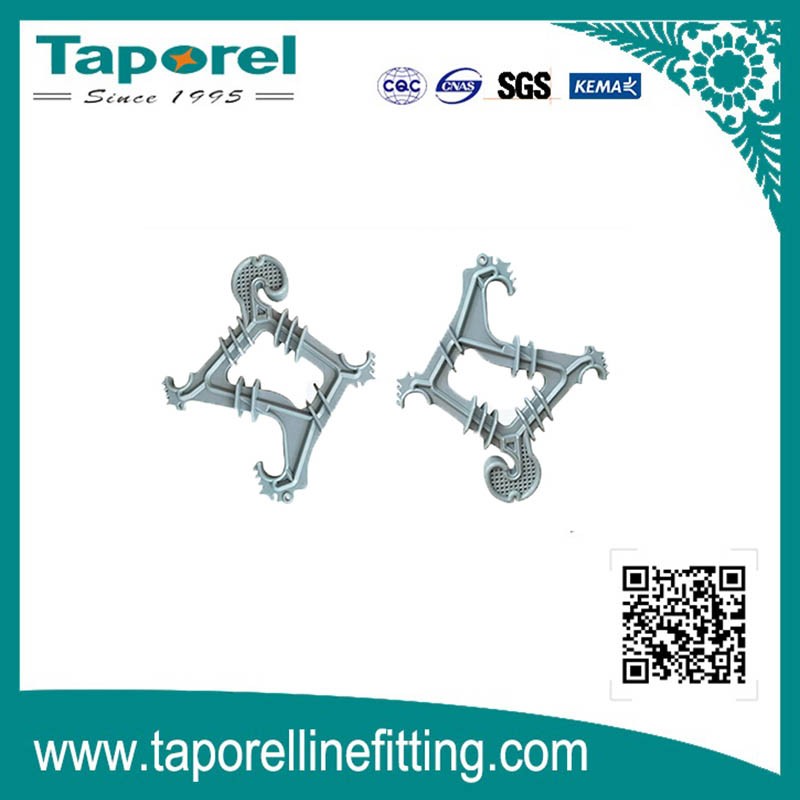

22-33kV HDPE Cable Spacer Modified Polyethylene Cable Spacer

Characteristics:

– Excellent Track-Resistant

– High Chemical Resistance

– Unbreakable and Light Weight

– Easiest Handling and Transportation

– Low Initial Cost

– Long Service Life

– Durable Metal Treads

– Water Repelling Surface

– High resistance to traction, flexion and impact

– May be fixed by elastomeric ring or pre-shaped plastic lace.


Share:
info@taporel.com +86 187 9266 0323

product details

22-33kV HDPE Cable Spacer Modified Polyethylene Cable Spacer

Description:

  The product has spacing function between cable, conductor used in 33kV transmission line, it can prevent conductor effectively from wind swing and wind vibration,and has advantages of corona proof, anti-loose,and protect conductor from damage.High-molecular polymer insulator is a new type of alloy insulator which modified by high-molecular polymer and silicone compound material, it is white solid granule, and has pyroplasticity, good flowability, easy to process, stable structure of alloy material, excellent insulation, electrical breakdown, tensile strength resistance mechanical properties.

    It will keep good mechanical property after 1000 hours accelerated weathering aging, the comprehensive performance is better than silicone rubber composite insulators. The product will be suitable for producing of all kinds of insulators, it has light weight, only 35% of ceramic and glass insulator, it is not easy to break, easy to handle and transport, and can reduce a lot of manpower and materials, more convenient and faster; It also can reduce load of cable and tower on transmission line, the high hydrophobicity is suitable for region of severe environment and can save a lot of transmission line maintenance costs.And also energy conservation and environmental protection in the whole manufacturing process, it only 25% of ceramic and glass insulator on energy dissipation, can reduce a lot of dust emission and transporting costs of raw materials.The product also conforms to requirements from international energy saving and environment protection.

    High molecular polymer insulator products conform to technical requirements of overhead high voltage transmission line, after practical application of product, it approves that new polymerization gold silicon insulation materials will play active role on improving quality of transmission line operation and safe reliability.


Applications:

Cable spacer is widely used in power transmission and distribution system.


Features:

– Excellent Track-Resistant

– High Chemical Resistance

– Unbreakable and Light Weight

– Easiest Handling and Transportation

– Low Initial Cost

– Long Service Life

– Durable Metal Treads

– Water Repelling Surface

– High resistance to traction, flexion and impact

– May be fixed by elastomeric ring or pre-shaped plastic lace.

22-33kV HDPE Cable Spacer Modified Polyethylene Cable Spacer
