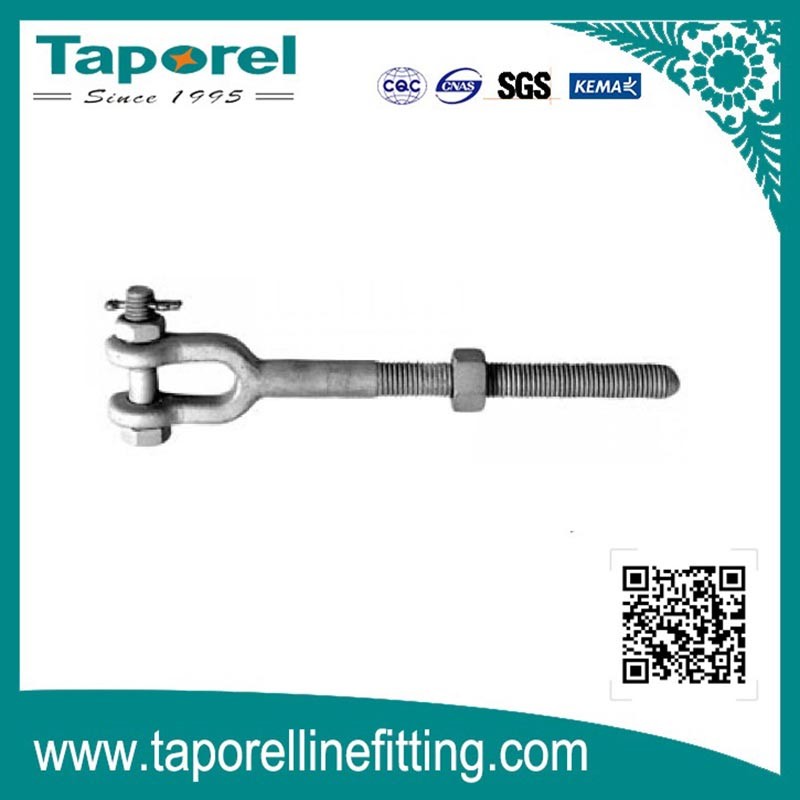

Bolt, Clevis

Clevis bolt includes one square nut. Clevis opening is 13/16" wide with 5/8" dia. x 2 3/4" long hex cotter bolt with hex nut and cotter key. Rated tenslile strength is 18,350 lbs. Galvanized per ASTM A-153.

DESCRIPTION：

Clevises are provided as components of tie rod assemblies that bolt manufactures and are often used in conjunction with turnbuckles. In a typical cross bracing assembly, a threaded rod is supported at each end by a clevis. One end of each clevis will grip onto a steel plate and is secured with a pin.

APPLICATION:

Clevis bolts are used to provide deadend connections to eyes or links. Clevis end includes 1/2" diameter machine bolt with nut and a stainless steel self locking cotter pin to provide a secure vibration proof assembly.

Features：

1) Corrosion-Resistant Clevis

2) Good for a wide variety of pivot-point applications, all are zinc-plated steel for moderate corrosion resistance. Clevis pins are not included.

3) Support pivoting movement along one axis when threaded onto shafts, rods, valve pistons, and other assemblies. All are zinc-plated steel for moderate corrosion resistance.

SPECIFICATION：
